    In-ceiling speaker, 2-way configuration

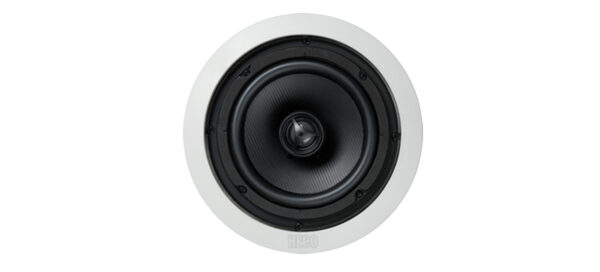

    HECO´s INC 62 is the medium-sized model in the Install Basic series. The 160 mm waterproof textured polypropylene cone and the specially coated fabric dome tweeter deliver a fully-fledged sound pattern in conjunction with a high quality 2-way crossover. Its coaxial driver configuration makes it particularly suitable for ceiling installation. The pivoting tweeter and level adjustment option mean the acoustics can also be ideally adapted to the respective installation conditions. The grille, which can be removed for installation purposes, provides a seamless transition to the discreet mounting frame.

    Technical specifications

    PRINCIPLE : Built-in loudspeakers SENSITIVITY (2.8V/1M) : 90 dB EQUIPMENT : 160 mm woofer, 25 mm tweeter IMPEDANCE : 4 Ohms CROSSOVER FREQUENCIES : 3.600 Hz POWER HANDLING (RMS/MAX) : 80 / 150 watts MOUNTING DIMENSIONS (Ø) : 193 mm OUTER DIMENSIONS Ø : 228 mm MOUNTING DEPTH : 73 mm FREQUENCY RESPONSE : 34 - 28.000 Hz RECOMMENDED AMPLIFIER OUTPUT : 30 - 160 Watts

    Highlights

    PRINCIPLE

    • Built-in loudspeakers

    EQUIPMENT

    • 160 mm woofer
    • 25 mm tweeter

    FEATURES

    • In-wall/in-ceiling loudspeaker
    • Special clamping mechanism for easy installation
    • Moisture-proof speaker system, suitable for use in humid rooms (bathroom)

    CABINET

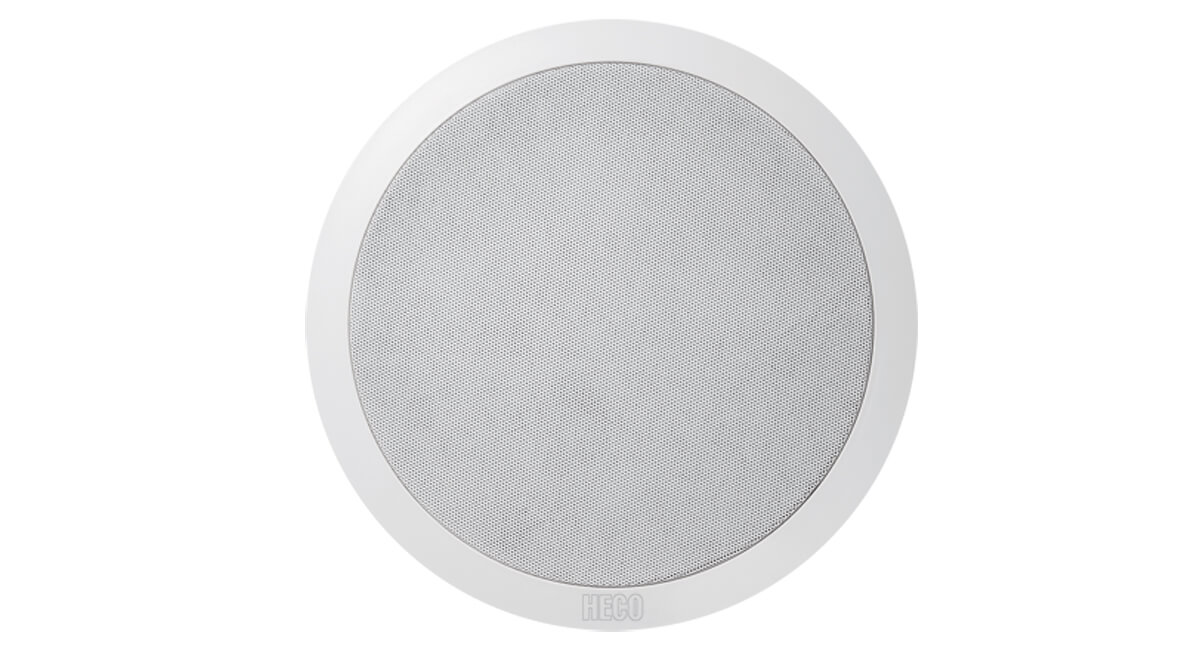

    • Solid protection grille

    WOOFER

    • Structure polypropylene woofer cone

    TWEETER

    • Coated silk soft dome tweeter

    CROSSOVER

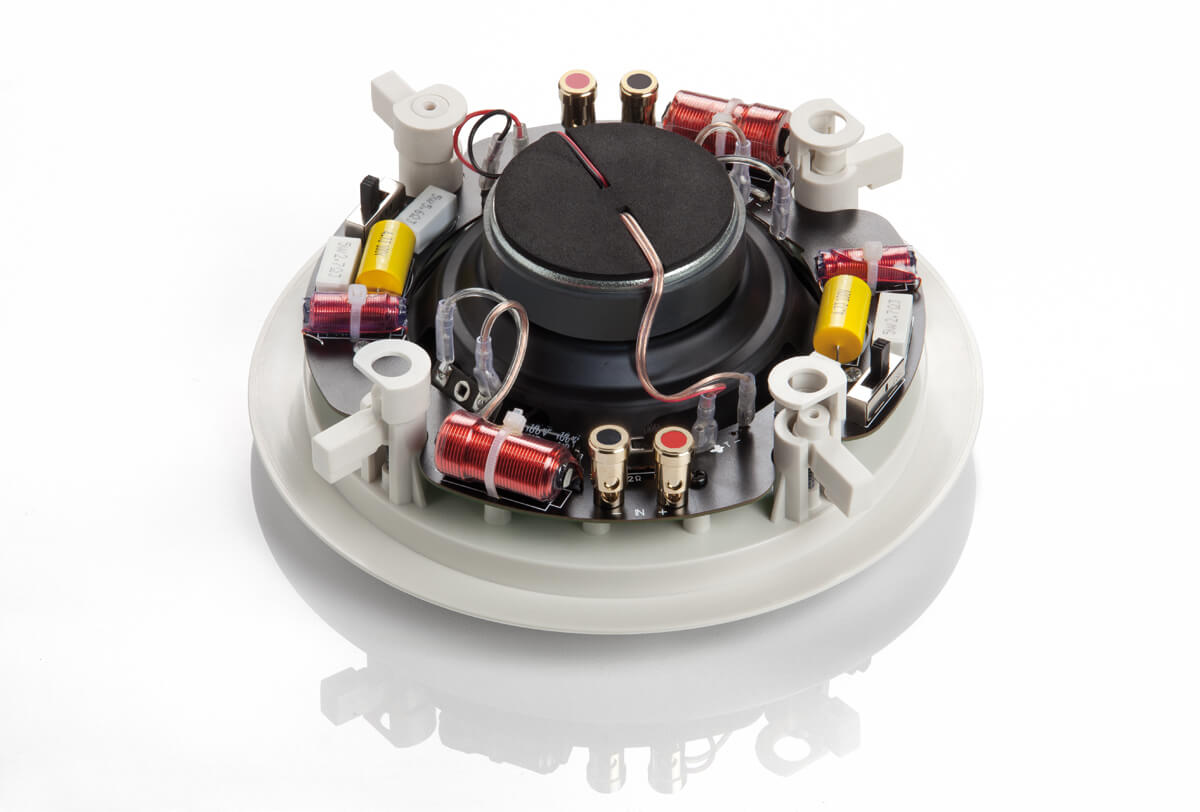

    • Crossover with high-quality components and 3 settings for the tweeter level

    CONNECTIONS

    • Gold-plated push terminal

    MOUNTING DIMENSIONS (Ø)

    • 193 mm

    MOUNTING DEPTH

    • 73 mm
