Emotiva TA-1 – Stereo Preamp/DAC/Tuner with Integrated Amplifier

Shop By Brand: Emotiva

    SPECIFICATIONS

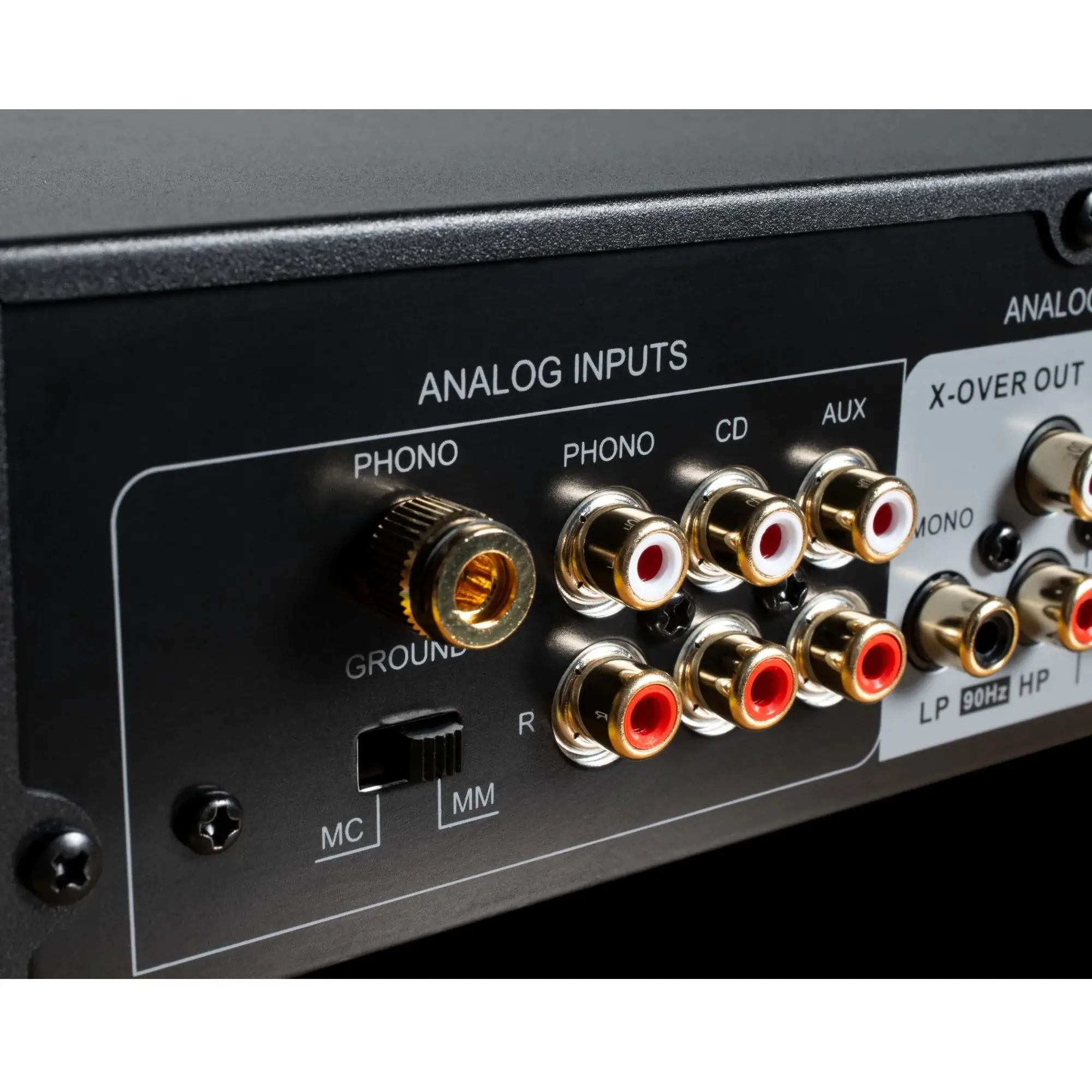

    Analog Inputs

    • 2 pairs - stereo analog line level inputs (CD, Aux).
    • 1 pair - stereo phono inputs (switchable; moving magnet or moving coil).
    • Tuner - FM (with external antenna input; 15 station presets).

    Digital Inputs

    • 1 - digital coax (S/PDIF); 24/192k.
    • 1 - digital optical (Toslink); 24/192k.
    • 1 - digital USB (DAC input); 24/192k.
    • 1 - Bluetooth receiver (Bluetooth 5, with AptX, AptX HD, and AAC support, antenna included).

    Outputs

    • 1 pair - stereo full range main outputs.
    • 1 pair - stereo high-pass outputs; with fixed 90 Hz Linkwitz-Riley high-pass filter.
    • 1 - subwoofer output; with fixed 90 Hz Linkwitz-Riley low-pass filter.
    • 1 - high performance stereo headphone output.

    Analog Performance (line level)

    • Maximum output level: 4 VRMS.
    • Frequency response: 5 Hz to 50 kHz +/- 0.04 dB.
    • THD+noise: < 0.001% (A-weighted).
    • IMD: < 0.004% (SMPTE).
    • S/N ratio: > 120 dB.
    • Crosstalk: < 90 dB.

    Analog Performance (speaker outputs)

    • 60 watts RMS/channel; 8 Ohms; both channels driven; 20 Hz – 20 kHz; THD < 0.02%.
    • 100 watts RMS/channel; 4 Ohms; both channels driven; at 1 kHz; THD < 1%.
    • Minimum load impedance: 4 Ohms.
    • Rated impedance: 8 Ohms.
    • Frequency response: 20 Hz to 20 kHz +/- 0.15 dB; 5 Hz to 80 kHz +0/-1.8 dB.
    • S/N ratio: > 116 dB.

    Analog Performance (phono)

    • Frequency response (MM and MC): 20 Hz to 20 kHz; ref standard RIAA curve.
    • THD+noise: < 0.015% (MM; A-weighted); < 0.06% (MC; A-weighted).
    • S/N ratio: > 78 dB (ref 5 mV; MM); > 58 dB (ref 0.5 mV; MC).
    • Gain (ref unity gain on main outputs at 1 kHz): 44 dB (MM); 55 dB (MC).

    Analog Performance (headphone)

    Power Output:
    • 8 Ohms: 23 mW / channel.
    • 33 Ohms: 90 mW / channel.
    • 47 Ohms: 127 mW / channel.
    • 150 Ohms: 145 mW / channel.
    • 300 Ohms: 114 mW / channel.
    • 600 Ohms: 75 mW / channel.

    Digital Performance

    • Frequency response: 5 Hz to 20 kHz +/- 0.15 dB (44k sample rate). 5 Hz to 80 kHz +/- 0.25 dB (192k sample rate).
    • THD+noise: < 0.003% (A-weighted; all sample rates).
    • IMD: < 0.007% (SMPTE).
    • S/N ratio: > 110 dB ref rated output.

    Trigger

    • 12 VDC trigger output.

    Power Requirements

    Universal SMPS which accepts anywhere between 100 VAC and 240 VAC.

    Controls And Indicators

    • Power: rocker switch; rear panel.
    • Standby: one front panel push.
    • Two front panel pushbuttons: Input Select; menu operation.
    • One front panel knob: Volume; Tuning; menu operation.
    • Display: high visibility blue alphanumeric VFD display (dimmable).

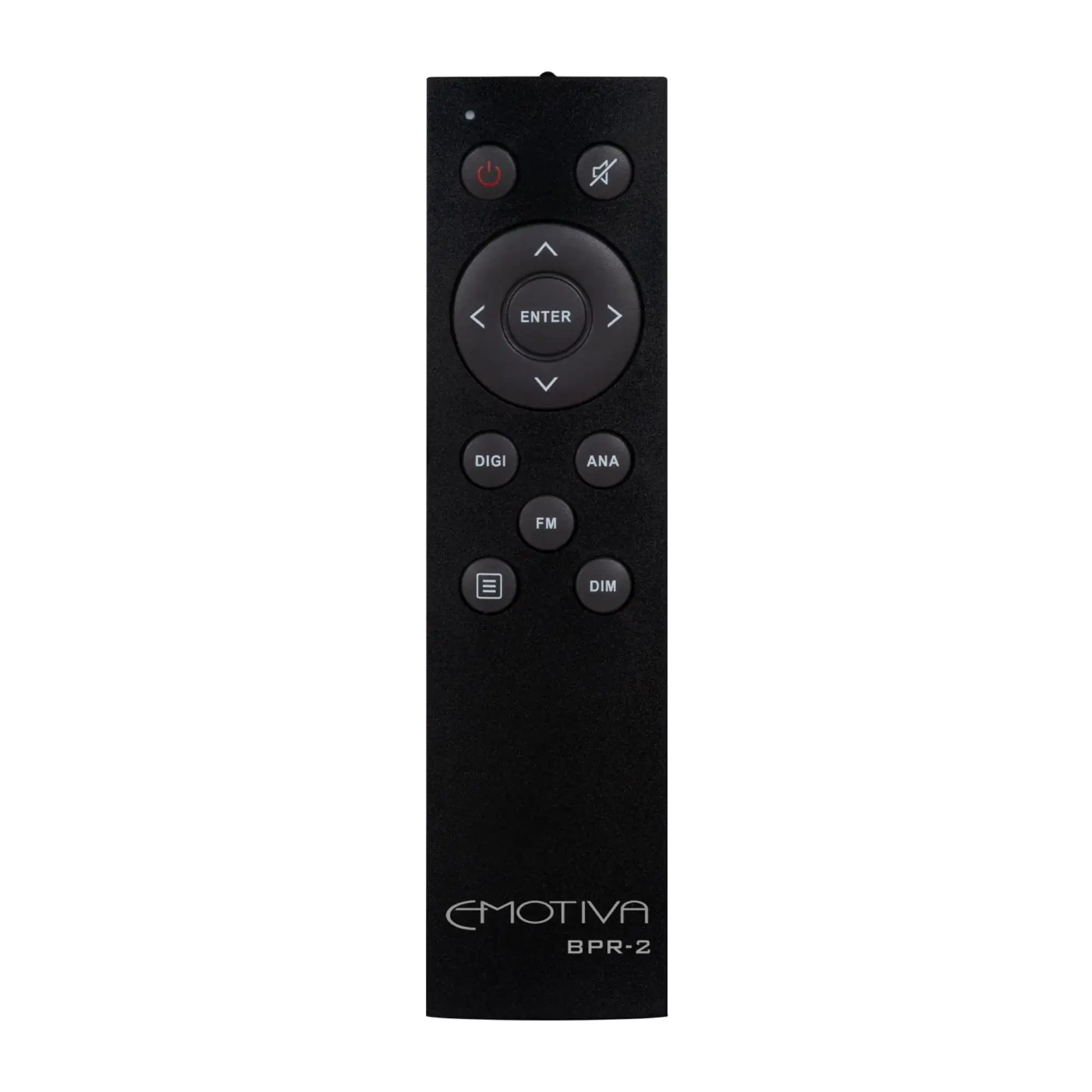

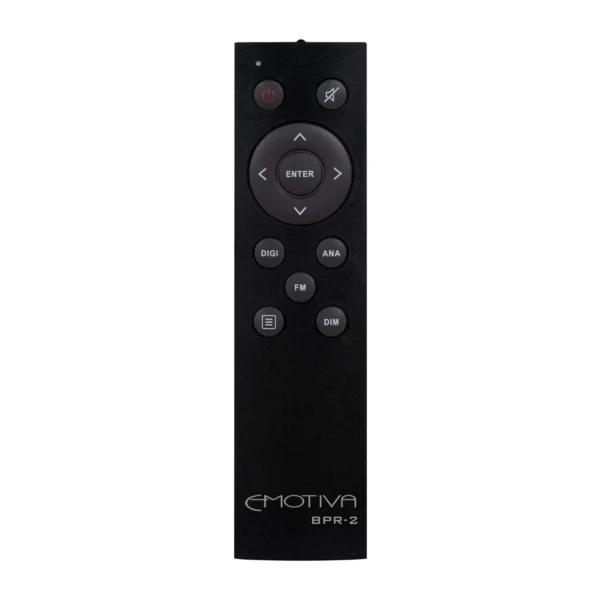

    • Remote Control: compact full-function infrared remote control.
    • LEDs: amber Standby LED; blue illuminated legends for Input buttons and Headphone output.

    Mechanical

    • Dimensions: 17” wide x 2-5/8” high x 12-1/2” deep (unboxed; without connectors). 21” long x 7” high x 17-1/2” deep (boxed).
    • Weight: 15 lbs (unboxed). 20 lbs (boxed).
